Data
| Brand: | TD47 Products |
| Model: | Screw saddles |

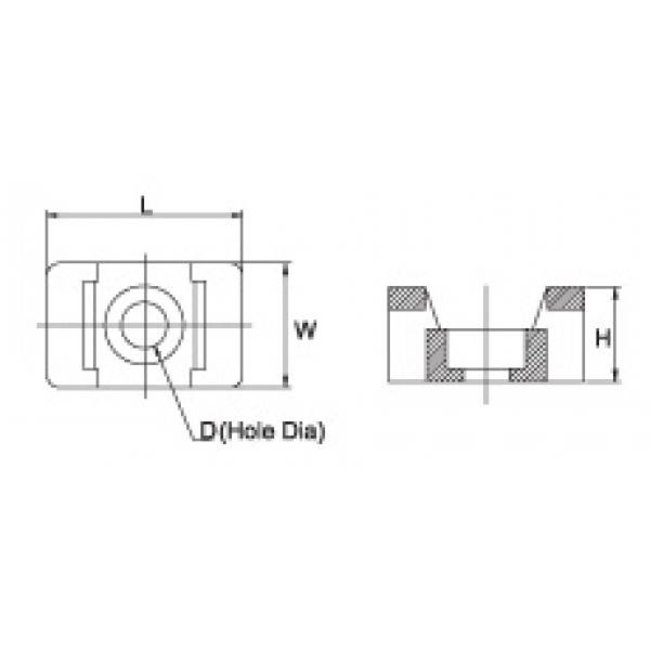

| Width (L) : | 21.8 mm |
| Length (W) : | 14.3 mm |
| Height (H): | 11.1 mm |
| Screw diameter (D): | ø5.4 mm |
| Max. ty-rap width : | 9.0 mm |
| Colour: | Black (UV Resistant) |
| Material: | Polyamide 6.6 |
| Temp. range: | -40°C to 85°C |
| Flammability: | UL 94 V2 |
| Delivery: | one bag á 100 pieces |
Information

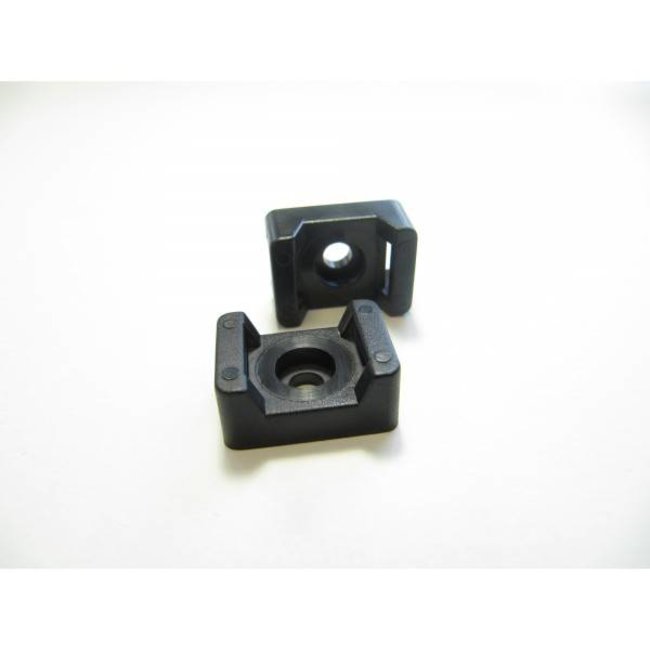

TD47 Products Screw saddles with size 21.8mm x 14.3mm x 11.1mm. Black
The black TD47 screw saddles with screw fixing are a type of fastening material that can be attached to a wall or other surface, for example, and to which you then attach your pipework or cables from switch boxes, electrical appliances, control panels, etc.
You can simply screw on the screw saddle and use a tie-wrap to pull or fix the cable or pipe.
Suitable for cable ties up to: 9.0 mm wide
Mounting hole diameter : 5.4 mm Screw : #10 (m5)
Our screw saddles can be processed at temperatures from -40 degrees Celsius to 85 degrees Celsius.
TD47 Products screw saddles are made of Polyamide 6.6 with a Fire Safety Standard UL94 V-2.
