Data
| Brand: |
WAGO® |
| Series: |
2273 |
| Model: |
205 |
| |
|
| Connection technology: |
Push Wire® |
| Terminal positions: |
5 |
| Stripping length: |
11mm / 0.43 inch |
| Conforms to: |
UL 486C - |
| Conforming: |
IEC/EN 60998 - 450V / 4KV / 24A |
| Colour: |
Transparent / Yellow |
| |
|
| Delivery: |
Per 20 pieces in blister |
| Data sheet: |
Data sheet Safety Article: 2273-205 |
Information

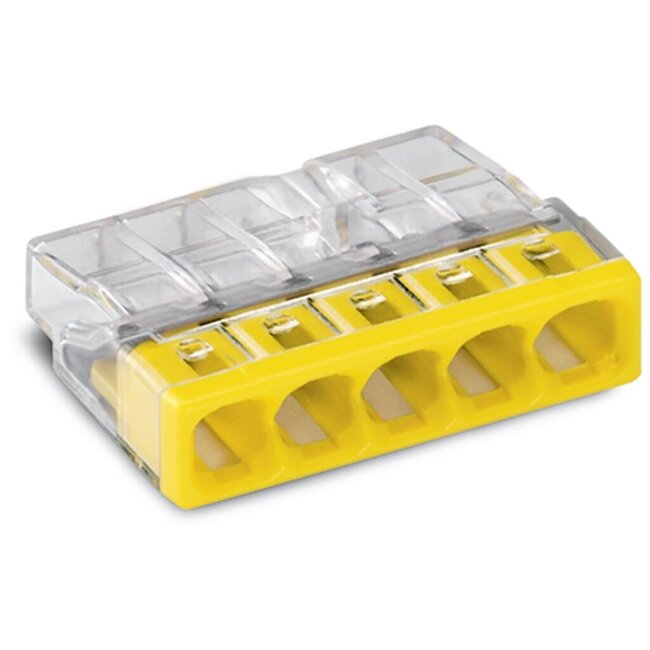

Connecting terminal pluggable series 2273 with Push-in PUSH WIRE®

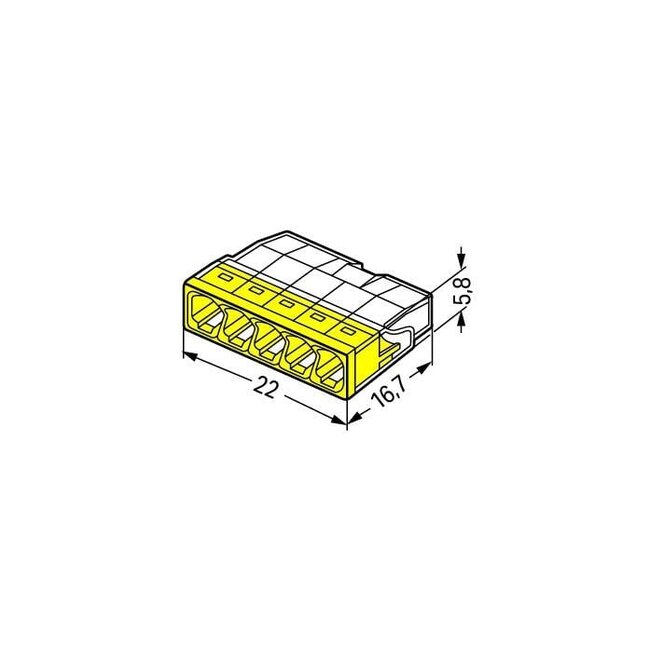

Connecting terminal pluggable (article number 2273-205) ensures an interference-free electrical installation. The Series 2273 splice terminals guarantee safety and a time-saving and uncomplicated installation in any building installation situation. These connection terminals with a rated voltage 450 V are suitable for currents up to 24 A. The product is therefore also suitable for heavy equipment. For plug-in connection terminals, a stripping length of 11 mm is required for the conductor connection. With this product, PUSH WIRE® technology comes into play. PUSH WIRE® connection technology uses the bending stiffness of the conductor to overcome the contact force of the clamping spring and thus clamp the conductor faster. The dimensions in width x height x depth are (22 x 5.8 x 16.7) mm. Connection clamp insertable is suitable for conductor cross sections from 0.5 mm² to 2.5 mm² depending on the type of conductor. The surface of the contacts is made of tin.
Safety instructions
for use Caution: Observe handling and safety instructions!
- Only to be used by an electrician!
- Do not work under voltage!
- Only use for the intended purpose!
- Observe national regulations, standards and directives!
- Observe technical data of the products!
- Observe number of permissible potentials per terminal!
- Do not use damaged/dirty components!
- Observe conductor types, cross sections and strip lengths!
- Insert guides up to the stop!
- Use original accessories!
Pass on or distribute only in accordance with the instructions for use!
